AirSim 提供了一个基于 Python 的事件相机模拟器，旨在实现性能和与模拟一起实时运行的能力。

事件相机#

事件相机是一种特殊的视觉传感器，它测量对数亮度的变化，并仅报告“事件”。每个事件由一组四个值组成，每当对数亮度的绝对变化超过某个阈值时就会生成。事件包含测量的时间戳、像素位置（x 和 y 坐标）和极性：根据对数亮度是增加还是减少，极性为 +1/-1。大多数事件相机的时间分辨率为微秒级，这使其速度明显快于 RGB 传感器，并且还具有高动态范围和低运动模糊的特点。有关事件相机的更多详细信息，请参阅 RPG-UZH 的本教程 。

AirSim event simulator#

The AirSim event simulator uses two consecutive RGB images (converted to grayscale), and computes "past events" that would have occurred during the transition based on the change in log luminance between the images. These events are reported as a stream of bytes, following this format:

<x> <y> <timestamp> <pol>

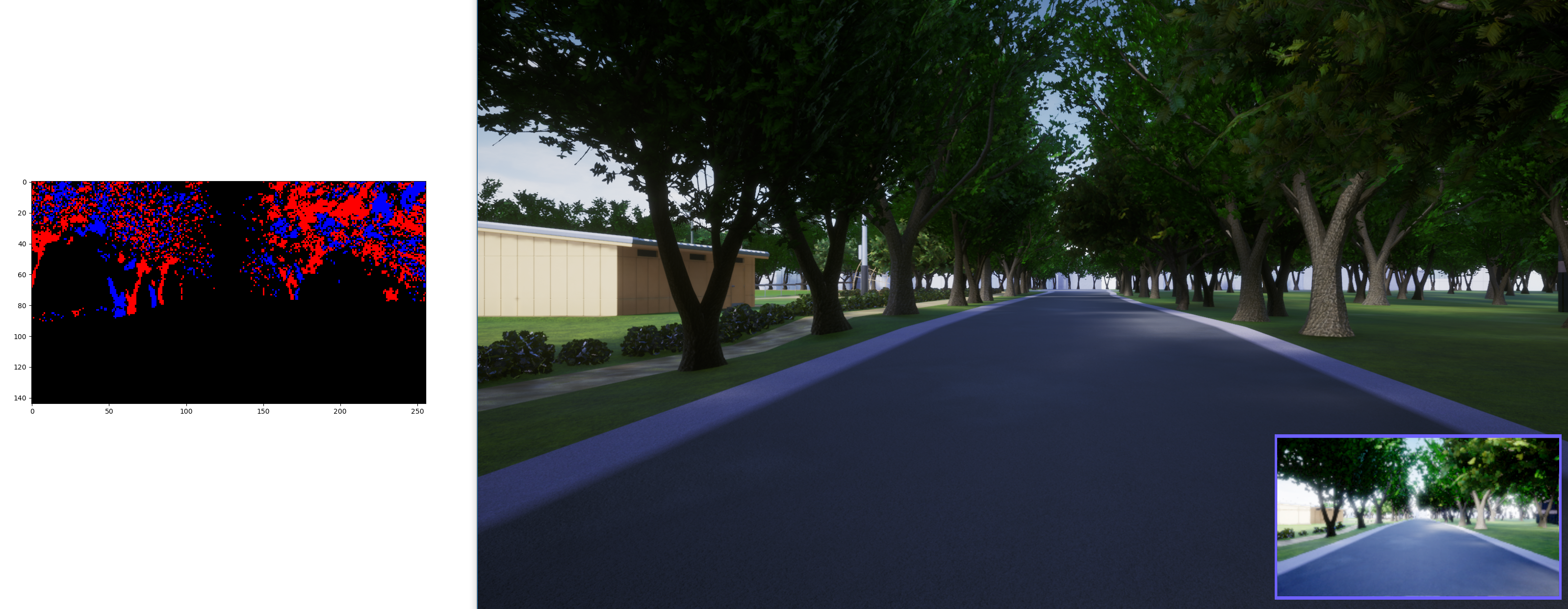

x and y are the pixel locations of the event firing, timestamp is the global timestamp in microseconds and pol is either +1/-1 depending on whether the brightness increased or decreased. Along with this bytestream, an accumulation of events over a 2D frame is also constructed, known as an 'event image' that visualizes +1 events as red and -1 as blue pixels. An example event image is shown below:


Usage#

An example script to run the event simulator alongside AirSim is located at https://github.com/microsoft/AirSim/blob/main/PythonClient/eventcamera_sim/test_event_sim.py. The following optional command-line arguments can be passed to this script.

args.width, args.height (float): Simulated event camera resolution
args.save (bool): Whether or not to save the event data to a file, args.debug (bool): Whether or not to display the simulated events as an image

The implementation of the actual event simulation, written in Python and numba, is at https://github.com/microsoft/AirSim/blob/main/PythonClient/eventcamera_sim/event_simulator.py. The event simulator is initialized as follows, with the arguments controlling the resolution of the camera.

from event_simulator import *
ev_sim = EventSimulator(W, H)

The actual computation of the events is triggered through an image_callback function, which is executed every time a new RGB image is obtained. The first time this function is called, due to the lack of a 'previous' image, it acts as an initialization of the event sim.

event_img, events = ev_sim.image_callback(img, ts_delta)
This function, which behaves similar to a callback (called every time a new image is received) returns an event image as a one dimensional array of +1/-1 values, thus indicating only whether events were seen at each pixel, but not the timing/number of events. This one dimensional array can be converted into the red/blue event image as seen in the function convert_event_img_rgb. events is a numpy array of events, each of format <x> <y> <timestamp> <pol>.

Through this function, the event sim computes the difference between the past and the current image, and computes a stream of events which is then returned as a numpy array. This can then be appended to a file.

There are quite a few parameters that can be tuned to achieve a level of visual fidelity/performance of the event simulation. The main factors to tune are the following:

  1. The resolution of the camera.
  2. The log luminance threshold TOL that determines whether or not a detected change counts as an event.

Note: There is also currently a max limit on the number of events generated per pair of images, which can also be tuned.

Algorithm#

The working of the event simulator loosely follows this set of operations: 1. Take the difference between the log intensities of the current and previous frames.
2. Iterating over all pixels, calculate the polarity for each each pixel based on a threshold of change in log intensity.
3. Determine the number of events to be fired per pixel, based on extent of intensity change over the threshold. Let \(N_{max}\) be the maximum number of events that can occur at a single pixel, then the total number of firings to be simulated at pixel location \(u\) would be \(N_e(u) = min(N_{max}, \frac{\Delta L(u)}{TOL})\).
4. Determine the timestamps for each interpolated event by interpolating between the amount of time that has elapsed between the captures of the previous and current images.
\(t = t_{prev} + \frac{\Delta T}{N_e(u)}\)
5. Generate the output bytestream by simulating events at every pixel and sort by timestamp.
