6. 绘制 UE4 辅助调试的形状

接上一节，在本教程中，我们将绘制 DrawDebugHelpers.h 提供的多个调试形状。DrawDebugHelpers.h 包含的相关的所有内容都是由 UE4 提供的。

创建一个新的 C++ Actor 子类并将其命名为 MyDrawDebugHelpers 。在头文件中，我们将在 .h 中声明将在 .cpp 文件中使用的变量，它们也可以在编辑器中进行编辑。我们将创建一个 FVectors，一个 FMatrix，一个 FBox，和一个 FTransform。

该头文件代码如下：

#pragma once

#include "CoreMinimal.h"
#include "GameFramework/Actor.h"
#include "MyDrawDebugHelpers.generated.h"

UCLASS()
class UNREALCPP_API AMyDrawDebugHelpers : public AActor
{
    GENERATED_BODY()

public:
    // Sets default values for this actor's properties
    AMyDrawDebugHelpers();

protected:
    // Called when the game starts or when spawned
    virtual void BeginPlay() override;

public:
    // Called every frame
    virtual void Tick(float DeltaTime) override;

    // declare location variables
    UPROPERTY(EditAnywhere, Category = "Locations")
    FVector LocationOne;

    UPROPERTY(EditAnywhere, Category = "Locations")
    FVector LocationTwo;

    UPROPERTY(EditAnywhere, Category = "Locations")
    FVector LocationThree;

    UPROPERTY(EditAnywhere, Category = "Locations")
    FVector LocationFour;

    UPROPERTY(EditAnywhere, Category = "Locations")
    FVector LocationFive;

    UPROPERTY(EditAnywhere, Category = "Locations")
    FMatrix CircleMatrix;

    UPROPERTY(EditAnywhere, Category = "Locations")
    FBox MyBox;

    UPROPERTY(EditAnywhere, Category = "Locations")
    FTransform MyTransform;

};

同时别忘了还要 include 头文件 DrawDebugHelpers.h

#include "MyDrawDebugHelpers.h"
// include draw debu helpers header file
#include "DrawDebugHelpers.h"

在.cpp文件中，我们将首先为变量指定默认值。下面是我们将为默认值添加的初始化代码。

// Sets default values
AMyDrawDebugHelpers::AMyDrawDebugHelpers()
{
    // Set this actor to call Tick() every frame.  You can turn this off to improve performance if you don't need it.
    PrimaryActorTick.bCanEverTick = true;

    // init variables with values
    LocationOne = FVector(0,0,600);
    LocationTwo = FVector(0,-600,600);
    LocationThree = FVector(0,600,600);
    LocationFour = FVector(-300,0,600);
    LocationFive = FVector(-400,-600,600);

    MyBox = FBox(FVector(0,0,0), FVector(200,200,200));
}

接下来，我们将在 BeginPlay() 函数中绘制许多不同的形状。

下面是我们将添加到 BeginPlay() 来绘制所有形状的函数。

// Called when the game starts or when spawned
void AMyDrawDebugHelpers::BeginPlay()
{
    Super::BeginPlay();

    DrawDebugPoint(GetWorld(), LocationOne, 200, FColor(52,220,239), true);

    DrawDebugSphere(GetWorld(), LocationTwo, 200, 26, FColor(181,0,0), true, -1, 0, 2);

    DrawDebugCircle(GetWorld(), CircleMatrix, 200, 50, FColor(0,104,167), true, -1, 0, 10);

    DrawDebugCircle(GetWorld(), LocationFour, 200, 50, FColor(0,0,0), true, -1, 0, 10);

    DrawDebugSolidBox(GetWorld(), MyBox, FColor(20, 100, 240), MyTransform, true);

    DrawDebugBox(GetWorld(), LocationFive, FVector(100,100,100), FColor::Purple, true, -1, 0, 10);

    DrawDebugLine(GetWorld(), LocationTwo, LocationThree, FColor::Emerald, true, -1, 0, 10);

    DrawDebugDirectionalArrow(GetWorld(), FVector(-300, 600, 600), FVector(-300, -600, 600), 120.f, FColor::Magenta, true, -1.f, 0, 5.f);

    DrawDebugCrosshairs(GetWorld(), FVector(0,0,1000), FRotator(0,0,0), 500.f, FColor::White, true, -1.f, 0);

}

编译代码。将你的新 Actor 实例对象拖放到场景中，则形状将在游戏中绘制。同时还可以在 Actor 的详细信息面板中编辑那些变量。

下面是最终的 .cpp 代码。

#include "MyDrawDebugHelpers.h"
// include draw debu helpers header file
#include "DrawDebugHelpers.h"


// Sets default values
AMyDrawDebugHelpers::AMyDrawDebugHelpers()
{
    // Set this actor to call Tick() every frame.  You can turn this off to improve performance if you don't need it.
    PrimaryActorTick.bCanEverTick = true;

    // init variables with values
    LocationOne = FVector(0,0,600);
    LocationTwo = FVector(0,-600,600);
    LocationThree = FVector(0,600,600);
    LocationFour = FVector(-300,0,600);
    LocationFive = FVector(-400,-600,600);

    MyBox = FBox(FVector(0,0,0), FVector(200,200,200));
}

// Called when the game starts or when spawned
void AMyDrawDebugHelpers::BeginPlay()
{
    Super::BeginPlay();

    DrawDebugPoint(GetWorld(), LocationOne, 200, FColor(52,220,239), true);

    DrawDebugSphere(GetWorld(), LocationTwo, 200, 26, FColor(181,0,0), true, -1, 0, 2);

    DrawDebugCircle(GetWorld(), CircleMatrix, 200, 50, FColor(0,104,167), true, -1, 0, 10);

    DrawDebugCircle(GetWorld(), LocationFour, 200, 50, FColor(0,0,0), true, -1, 0, 10);

    DrawDebugSolidBox(GetWorld(), MyBox, FColor(20, 100, 240), MyTransform, true);

    DrawDebugBox(GetWorld(), LocationFive, FVector(100,100,100), FColor::Purple, true, -1, 0, 10);

    DrawDebugLine(GetWorld(), LocationTwo, LocationThree, FColor::Emerald, true, -1, 0, 10);

    DrawDebugDirectionalArrow(GetWorld(), FVector(-300, 600, 600), FVector(-300, -600, 600), 120.f, FColor::Magenta, true, -1.f, 0, 5.f);

    DrawDebugCrosshairs(GetWorld(), FVector(0,0,1000), FRotator(0,0,0), 500.f, FColor::White, true, -1.f, 0);

}

// Called every frame
void AMyDrawDebugHelpers::Tick(float DeltaTime)
{
    Super::Tick(DeltaTime);

}

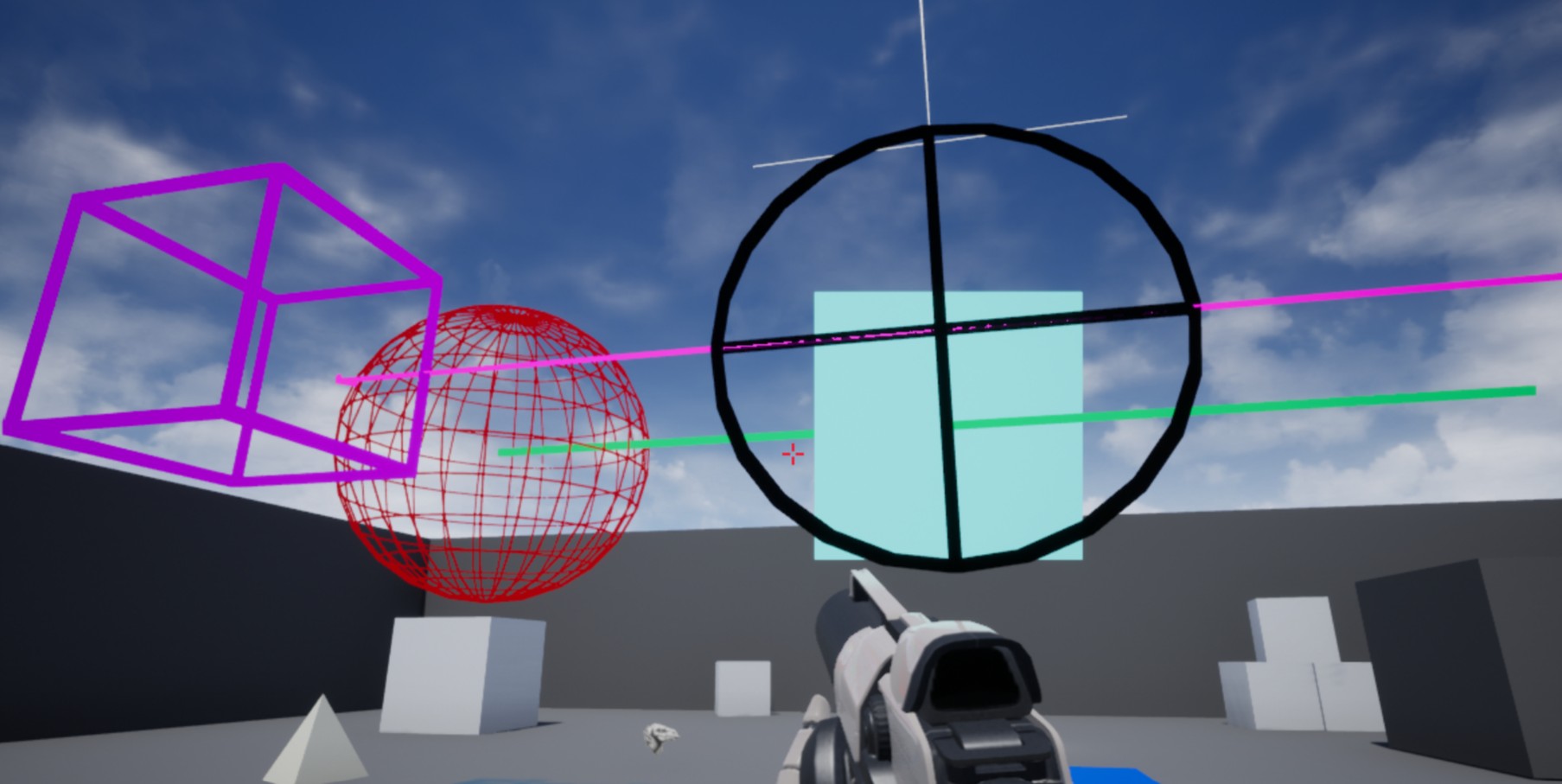

最终效果如下：
