25. 触发区域内的键盘响应开关灯

接上一节教程，创建一个新的 C++ Actor 子类并将其命名为 LightSwitchPushButton 。我们将在头文件中定义四个东西 —— 我们将定义一个 UPointLightComponent、USphereComponent、float 变量和 void 函数。

下面是最终的头代码。

LightSwitchPushButton.h

#pragma once

#include "CoreMinimal.h"
#include "GameFramework/Actor.h"
#include "LightSwitchPushButton.generated.h"

UCLASS()
class UNREALCPP_API ALightSwitchPushButton : public AActor
{
    GENERATED_BODY()

public:
    // Sets default values for this actor's properties
    ALightSwitchPushButton();

protected:
    // Called when the game starts or when spawned
    virtual void BeginPlay() override;

public:
    // Called every frame
    // virtual void Tick(float DeltaTime) override;

    // declare point light comp
    UPROPERTY(VisibleAnywhere, Category = "Light Switch")
    class UPointLightComponent* PointLight;

    // declare sphere comp
    UPROPERTY(VisibleAnywhere, Category = "Light Switch")
    class USphereComponent* LightSphere;

    // declare light intensity variable
    UPROPERTY(VisibleAnywhere, Category = "Light Switch")
    float LightIntensity;

    // declare ToggleLight function
    UFUNCTION(BlueprintCallable, Category = "Light Switch")
    void ToggleLight();

};

接下来，在我们的 .cpp 文件中，让我们首先 #include 我们将在代码中使用的必要脚本。包括 Components/PointLightComponent.h 和 Components/spherecomcomponent.h 两个文件。

#include "LightSwitchPushButton.h"
// include these header files
#include "Components/PointLightComponent.h"
#include "Components/SphereComponent.h"

我们将在构造函数中设置 actor 的所有默认属性。首先让我们设置我们的 float 变量 LightIntensity 为 3000.0f，它将使光相对于其他对象看起来足够明亮。接下来，我们将创建我们的 UPointLightComponent 并将它设置为我们的 RootComponent 。之后，我们将创建 USphereComponent ，当我们的玩家在半径内时，它将作为碰撞球体。然后，我们将创建简单的 ToggleLight() 函数来切换灯光的可见性状态。稍后我们将从玩家代码中调用该函数。下面是LightSwitchPushButton 角色的最后一个 .cpp 文件。

LightSwitchPushButton.cpp

#include "LightSwitchPushButton.h"
#include "Components/PointLightComponent.h"
#include "Components/SphereComponent.h"

// Sets default values
ALightSwitchPushButton::ALightSwitchPushButton()
{
    // Set this actor to call Tick() every frame.  You can turn this off to improve performance if you don't need it.
    PrimaryActorTick.bCanEverTick = true;

    LightIntensity = 3000.0f;

    PointLight = CreateDefaultSubobject<UPointLightComponent>(TEXT("Point Light"));
    PointLight->Intensity = LightIntensity;
    //PointLight->bVisible = true; ///< 过时了
    //PointLight->SetVisibleFlag(true);
    PointLight->SetVisibility(true);
    RootComponent = PointLight;

    LightSphere = CreateDefaultSubobject<USphereComponent>(TEXT("Light Sphere Component"));
    LightSphere->InitSphereRadius(300.0f);
    LightSphere->SetCollisionProfileName(TEXT("Trigger"));
    LightSphere->SetCollisionResponseToChannel(ECC_Pawn, ECR_Ignore);
    LightSphere->SetupAttachment(RootComponent);
}

// Called when the game starts or when spawned
void ALightSwitchPushButton::BeginPlay()
{
    Super::BeginPlay();
}

void ALightSwitchPushButton::ToggleLight()
{
    PointLight->ToggleVisibility();
}

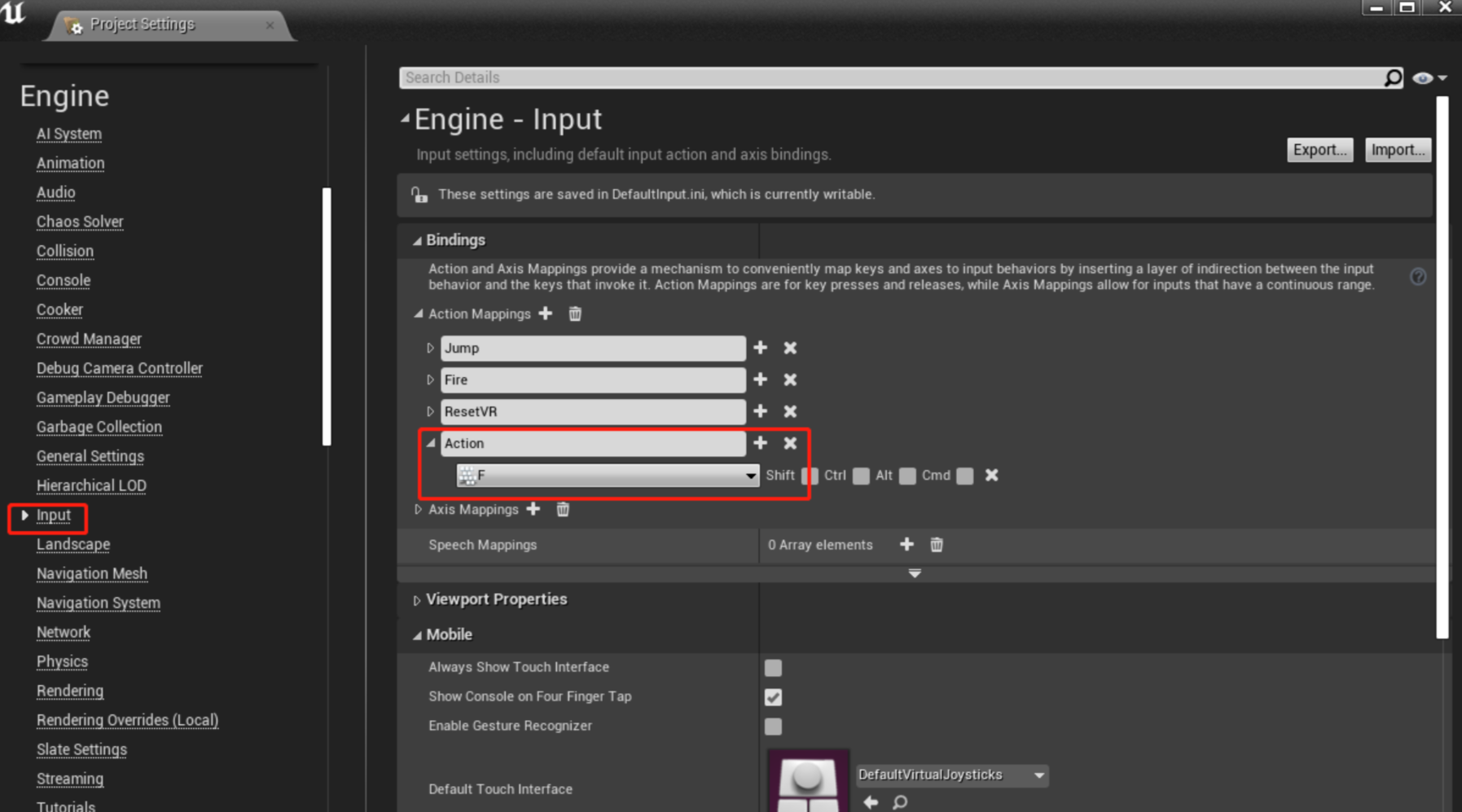

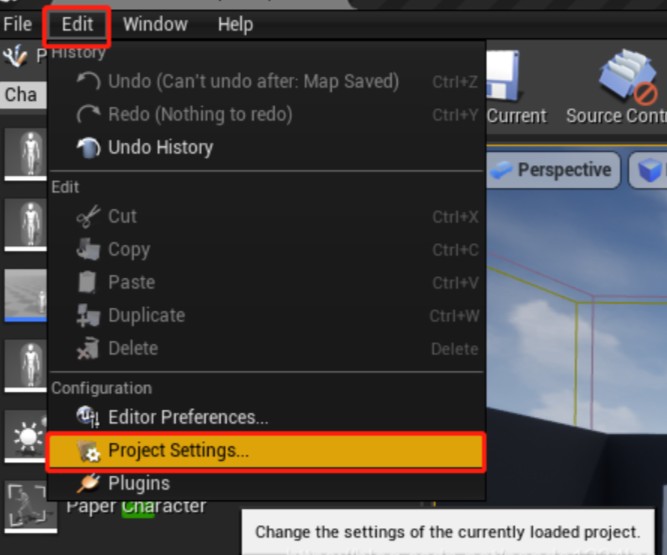

接下来，和上一节类似，让我们向项目添加一个 Action 输入。在本例中，我们将把 Action 输入绑定到键盘的 F键。转到 编辑>项目设置 ( Edit > Project Settings)。然后选择 Input 选项。单击 Action Mappings 旁边的加号。调用新的输入 Action 并从下拉菜单中选择 F 。

【以下我们把目光转到 xxxCharacter.h / .cpp 上】

在 xxxCharacter.h文件中，在 OnFire 方法下添加 OnAction 方法。

protected:

    /** Fires a projectile. */
    void OnFire();

    // on action
    void OnAction();

此外，我们还必须包含 LightSwitchPushButton 头文件，这样我们的角色才能访问它的功能。

// declare overlap begin function
UFUNCTION()
void OnOverlapBegin(class UPrimitiveComponent* OverlappedComp, class AActor* OtherActor, class UPrimitiveComponent* OtherComp, int32 OtherBodyIndex, bool bFromSweep, const FHitResult& SweepResult);

// declare overlap end function
UFUNCTION()
void OnOverlapEnd(class UPrimitiveComponent* OverlappedComp, class AActor* OtherActor, class UPrimitiveComponent* OtherComp, int32 OtherBodyIndex);
// declare current light switch
class ALightSwitchPushButton* CurrentLightSwitch;

同时还声明了 UCapsuleComponent 来处理我们的触发事件

UPROPERTY(VisibleAnywhere, Category = "Trigger Capsule")
class UCapsuleComponent* TriggerCapsule;

在构造函数中添加触发器胶囊并将其绑定到重叠事件。接着设置变量 CurrentLightSwitch 为 NULL 。

AUnrealCPPCharacter::AUnrealCPPCharacter()
{
    ...
    // create trigger capsule
    TriggerCapsule = CreateDefaultSubobject<UCapsuleComponent>(TEXT("Trigger Capsule"));
    TriggerCapsule->InitCapsuleSize(55.f, 96.0f);;
    TriggerCapsule->SetCollisionProfileName(TEXT("Trigger"));
    TriggerCapsule->SetupAttachment(RootComponent);

    // bind trigger events
    TriggerCapsule->OnComponentBeginOverlap.AddDynamic(this, &AUnrealCPPCharacter::OnOverlapBegin);
    TriggerCapsule->OnComponentEndOverlap.AddDynamic(this, &AUnrealCPPCharacter::OnOverlapEnd);

     // set current light switch to null
     CurrentLightSwitch = NULL;
}

进一步，将 Action 输入绑定连接到玩家

void AUnrealCPPCharacter::SetupPlayerInputComponent(class UInputComponent* PlayerInputComponent)
{
    ...
    // Bind action event
    PlayerInputComponent->BindAction("Action", IE_Pressed, this, &AUnrealCPPCharacter::OnAction);

}

将 OnAction() 函数添加到玩家脚本中。该函数将检查 CurrentLightSwitch 是否为 NULL 。如果 CurrentLightSwitch 不为 NULL，那么当玩家按下动作键 F 时，将切换灯光的可见性（开关灯）。然后，添加重叠函数来设置和取消 CurrentLightSwitch

void AUnrealCPPCharacter::OnAction()
{
    if(CurrentLightSwitch)
    {
        CurrentLightSwitch->ToggleLight();
    }
}

// overlap on begin function
void AUnrealCPPCharacter::OnOverlapBegin(class UPrimitiveComponent* OverlappedComp, class AActor* OtherActor, class UPrimitiveComponent* OtherComp, int32 OtherBodyIndex, bool bFromSweep, const FHitResult& SweepResult)
{
    if (OtherActor && (OtherActor != this) && OtherComp && OtherActor->GetClass()->IsChildOf(ALightSwitchPushButton::StaticClass()))
    {
        CurrentLightSwitch = Cast<ALightSwitchPushButton>(OtherActor);
    }
}

// overlap on end function
void AUnrealCPPCharacter::OnOverlapEnd(class UPrimitiveComponent* OverlappedComp, class AActor* OtherActor, class UPrimitiveComponent* OtherComp, int32 OtherBodyIndex)
{
    if (OtherActor && (OtherActor != this) && OtherComp)
    {
        CurrentLightSwitch = NULL;
    }
}

编译代码。拖放 actor （LightSwitchPushButton）到场景中，当玩家进入球形触发区域，点击 F 键开关灯。

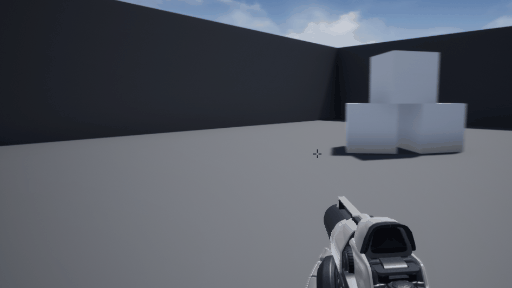

最后的效果图如下：
